Beer Goggles
Beer Goggles is a gravity and temperature monitoring system designed for Beyond the Pale Brewing. The prototype combines a load cell, ultrasonic sensor, and Arduino control to automate data collection during fermentation. I handled both the mechanical integration and sensor calibration, using 3D printing, wiring, and custom code to create a compact, closed-loop system that delivers accurate, real-time readings.
A specific gravity and temperature monitoring system is needed to streamline and support Beyond the Pale Brewing’s production as they expand. The system should enable simple, accurate, and continuous data collection directly from the brewing tanks. It must operate reliably under brewing conditions, maintain hygienic standards, and deliver consistent, real-time measurements to improve efficiency and product quality.

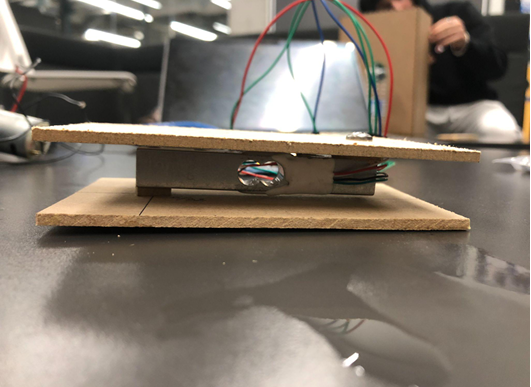

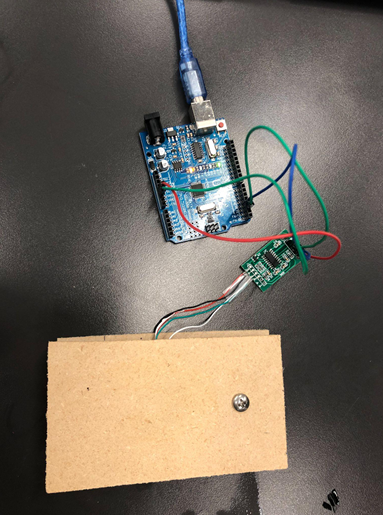

The final design uses a load cell and ultrasonic sensor connected to an Arduino Uno to calculate specific gravity automatically. A peristaltic pump transfers the beer between the main tank and a sealed side reservoir, while a custom program collects and visualizes real-time data. The result is a clean, closed-loop system that gives brewers consistent, accurate measurements with minimal manual input.
Key Features
- Automated Gravity Measurement
- Closed-Loop System
- Dual Sensor Integration

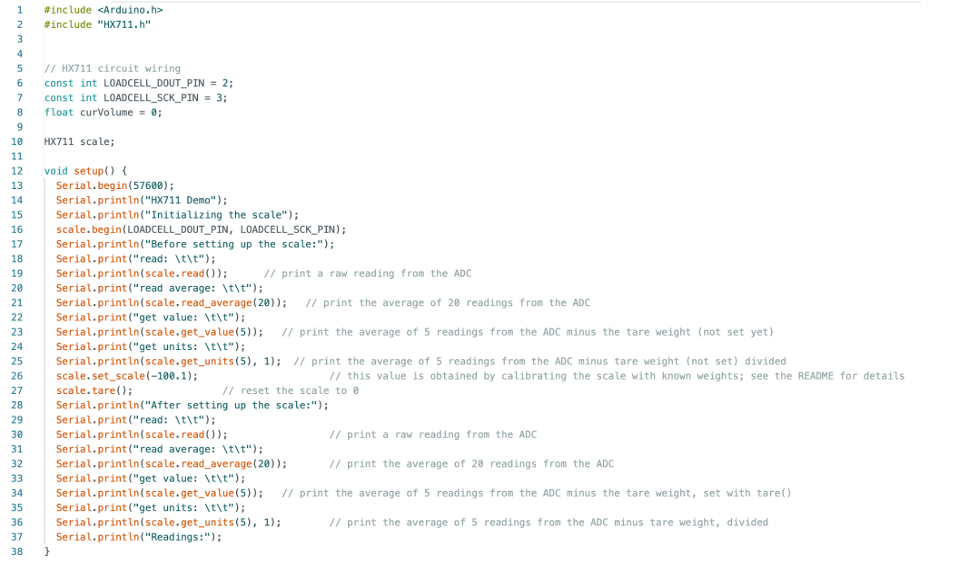

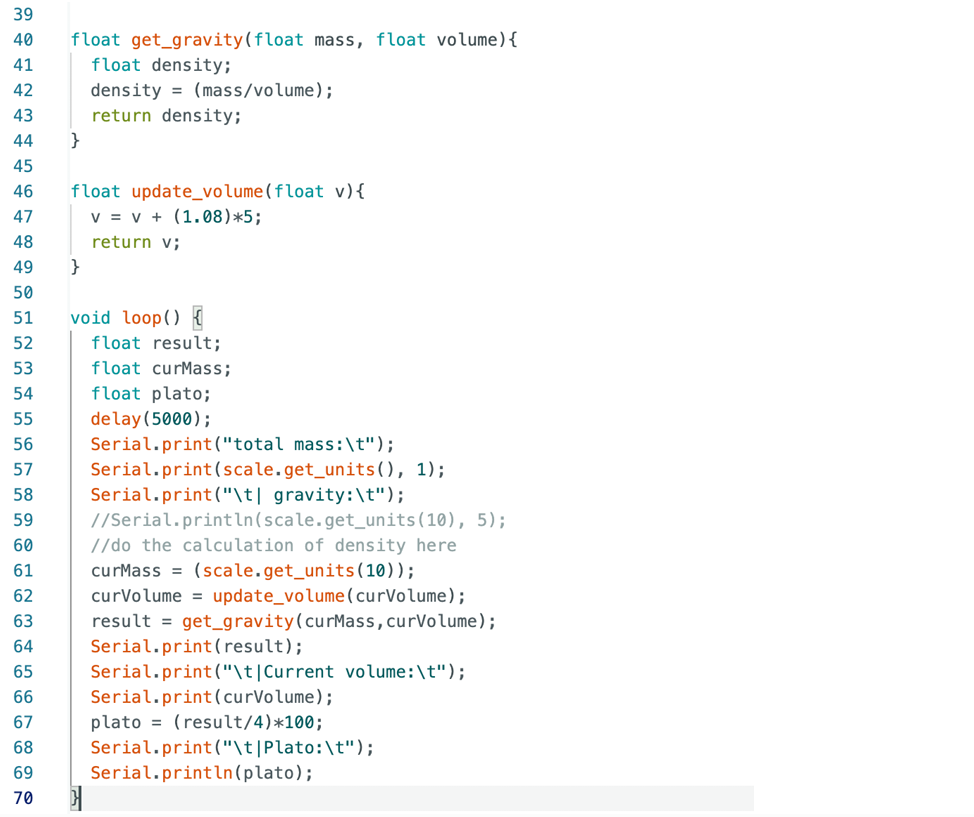

- Custom Arduino Control
- Modular Design
- Real-Time Data Output
